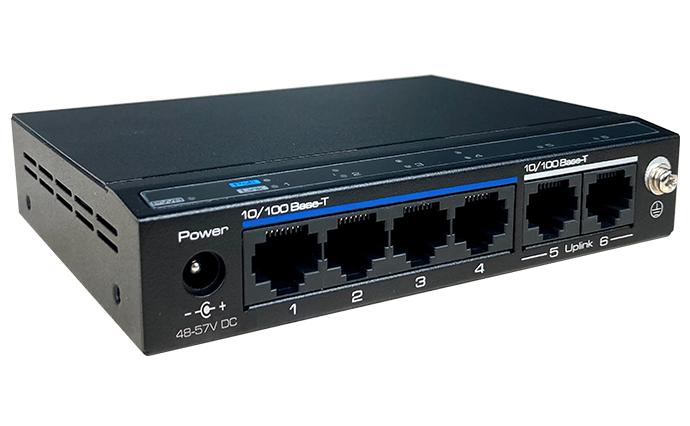

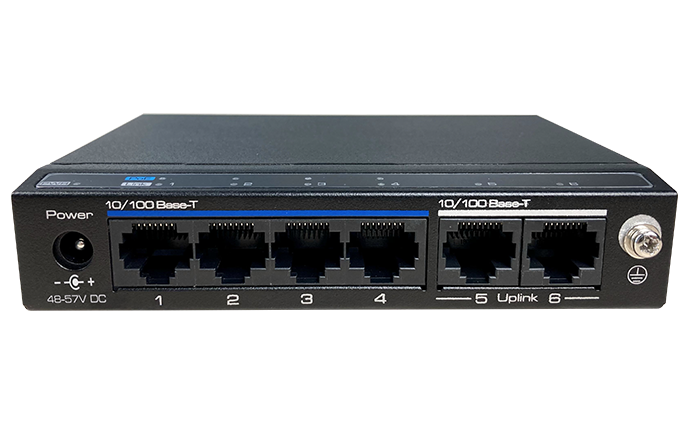

 4-Port FE PoE+ 2-Port Fast Ethernet Switch

4-Port FE PoE+ 2-Port Fast Ethernet Switch

UTP3106-PSB
  •  $row.goods_name
  •  $row.goods_name
  •  $row.goods_name
  • Description
  • Specifications
  • Dimensions
  • Applications
  • Package
  • Download
  • Related Video
  • Related Product


OVERVIEW

This series contains the following types:

● UTP3106-PSB: 4-Port FE PoE+ 2-Port Fast Ethernet Switch

● UTP3106-PSD: 4-Port FE PoE++ 2-Port Fast Ethernet Switch

● UTP3210-PSD: 8-Port FE PoE++ 2-Port Gigabit Ethernet Switch

4-Port FE PoE+/ PoE++ 2-Port Fast Ethernet Switch Ethernet Switch provides 4*10/100Mbps RJ-45 Ethernet ports, 2*10/100Mbps uplink RJ-45 Ethernet ports. 8-Port FE PoE++ 2-Port Gigabit Ethernet Switch provides 8*10/100Mbps RJ-45 Ethernet ports, 2*10/100/1000Mbps uplink RJ-45 Ethernet ports. All downlink RJ-45 ports support Power-over-Ethernet (PoE).

4-Port FE PoE+ 2-Port Fast Ethernet Switch can deliver up to 30W power per port.

4-Port FE PoE++ 2-Port Fast Ethernet Switch can deliver up to 90W power for port 1, and deliver up to 45W power for ports 2 to 4 each.

8-Port FE PoE++ 2-Port Gigabit Ethernet Switch can deliver up to 45W power per port. It can be set by DIP switch to deliver up to 90W power for port 1, disabled PoE function for port 2 at the same time, and deliver up to 45W power for ports 3 to 8 each.

The switch meets IEEE 802.3af/at/bt standard.

The switch supports 3 working modes through DIP switch: Default, VLAN and CCTV. Under VLAN and CCTV mode, it supports PoE watchdog features, which can detect and restart the camera automatically if it stops working. It can be widely used in video security monitoring systems, network projects, etc.


FEATURES AND HIGHTLIGHTS

Abundant Interfaces

● UTP3106-PSB/ UTP3106-PSD: 4*10/100BASE-T PoE RJ-45(Auto MDI/MDIX)

2*10/100BASE-T RJ-45(Auto MDI/MDIX)

● UTP3210-PSD: 8*10/100BASE-T PoE RJ-45(Auto MDI/MDIX)

2*10/100/1000BASE-T RJ-45(Auto MDI/MDIX)


PoE Mode DIP Switch

● UTP3210-PSD PoE mode can be set by DIP switch.

Mode 1: 45W max for each port.

Mode 2: 90W max for port 1, disabled PoE function for port 2, 45W max for ports 3 to 8 each.


One-key Smart Mode

● Default: All ports are free to communicate, transmission distance: 0~100m.

● VLAN: Downlink ports are isolated from each other, but can communicate with uplink ports. This mode supports PoE watchdog.

● CCTV: The transmission distance is extended up to 250m, but the rate is limited to 10Mbps. This mode supports PoE watchdog.

Item

UTP3106-PSB

UTP3106-PSD

UTP3210-PSD

Hardware Specifications

Downlink Ports

4*10/100BASE-T PoE RJ-45(Auto-MDI/MDI-X)

8*10/100BASE-T PoE RJ-45(Auto-MDI/MDI-X)

Uplink Ports

2*10/100BASE-T RJ-45(Auto-MDI/MDI-X)

2*10/100/1000BASE-T RJ-45(Auto-MDI/MDI-X)

LED Indicators

1*PWR, power indicator

6*Link, port indicators

10*Link, port indicators

4*PoE, PoE indicators

8*PoE, PoE indicators

DIP Switch

Default: All ports are free to communicate, transmission distance: 0~100m.

VLAN mode: downlink ports are isolated from each other, but can communicate with uplink ports. This mode supports PoE watchdog.

CCTV mode: the transmission distance is extended up to 250m, but the rate is limited to 10Mbps. This mode supports PoE watchdog.

PoE Mode DIP Switch

/

Mode1: 45W max for each port

Mode2: 90W max for port 1, disabled PoE function for port 2, 45W max for ports 3 to 8 each.

Input Voltage

48~57V DC

Power Consumption

≤130W (Full load including PoE)

≤160W (Full load including PoE)

Dimensions (W*D*H)

122mm*92mm*25mm

180mm*92mm*25mm

Net Weight

0.21kg

0.31kg

Installation

Desktop/Wall mounted

Material

Metal shell

Color

Black

Switch Property

Standards

IEEE 802.3, IEEE 802.3u, IEEE 802.3x

Forwarding Modes

Store and Forward

MAC Table

2k

8k

Switching Capacity

1.2Gbps

5.6Gbps

Packet Forwarding Rate

0.8928Mpps

4.1664Mpps

Power Supply

PoE Power Supply Type

End-span

PoE Standard

IEEE 802.3af/at (PSE)

IEEE 802.3af/at/bt(PSE)

IEEE 802.3af/at/bt(PSE)

PoE Pin Assignment

1 port:1/2(-), 3/6(+)

1 port:3/6/4/5(+),1/2/7/8(-)

1 port:3/6/4/5(+),1/2/7/8(-)

2~4 ports:1/2(+), 3/6(-)

2~4 ports:1/2(+), 3/6(-)

2~8 ports:1/2(+), 3/6(-)

PoE Budget

30W max for ports 1 to 4 each

90W max for port 1, 45W max for ports 2 to 4 each

Mode1: 45W max for each port.

120W max for whole switch

120W max for whole switch

Mode2: 90W max for port 1, disabled PoE function for port 2, 45W max for ports 3 to 8 each
150W max for whole switch

Reliability

ESD

Contact Discharge: ±6kV, Air Discharge: ±8kV

Surge

6kV

Operating

-10°C~55°C, 5%~95% (Non-condensation)

Storage

-40°C~70°C, 5%~95% (Non-condensation)

Item

Quantity

Switch

1 pc

Power Adapter

1 pc

Power Cable

1 pc

Quick Installation Guide

1 pc
