4-Port FE PoE++ 2-Port Fast Ethernet Switch
Home Products PoE PoE++ Switches
 4-Port FE PoE++ 2-Port Fast Ethernet Switch

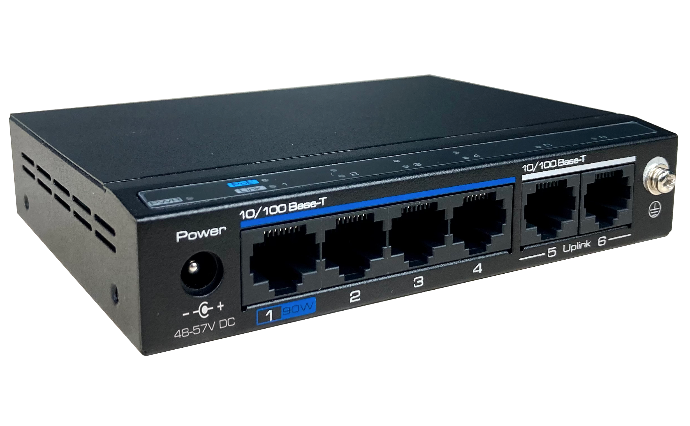

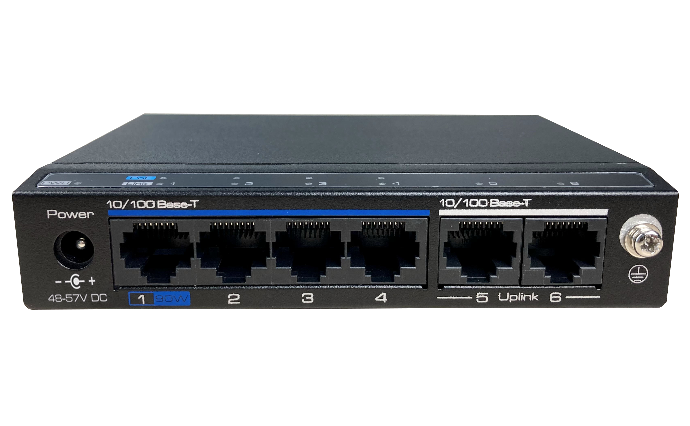

4-Port FE PoE++ 2-Port Fast Ethernet Switch

UTP3106-PSD
  •  $row.goods_name
  •  $row.goods_name
  •  $row.goods_name
  • Description
  • Specifications
  • Dimensions
  • Applications
  • Package
  • Download
  • Related Video
  • Related Product


OVERVIEW

This series contains the following types:

● UTP3106-PSB: 4-Port FE PoE+ 2-Port Fast Ethernet Switch

● UTP3106-PSD: 4-Port FE PoE++ 2-Port Fast Ethernet Switch

● UTP3210-PSD: 8-Port FE PoE++ 2-Port Gigabit Ethernet Switch

4-Port FE PoE+/ PoE++ 2-Port Fast Ethernet Switch Ethernet Switch provides 4*10/100Mbps RJ-45 Ethernet ports, 2*10/100Mbps uplink RJ-45 Ethernet ports. 8-Port FE PoE++ 2-Port Gigabit Ethernet Switch provides 8*10/100Mbps RJ-45 Ethernet ports, 2*10/100/1000Mbps uplink RJ-45 Ethernet ports. All downlink RJ-45 ports support Power-over-Ethernet (PoE).

4-Port FE PoE+ 2-Port Fast Ethernet Switch can deliver up to 30W power per port.

4-Port FE PoE++ 2-Port Fast Ethernet Switch can deliver up to 90W power for port 1, and deliver up to 45W power for ports 2 to 4 each.

8-Port FE PoE++ 2-Port Gigabit Ethernet Switch can deliver up to 45W power per port. It can be set by DIP switch to deliver up to 90W power for port 1, disabled PoE function for port 2 at the same time, and deliver up to 45W power for ports 3 to 8 each.

The switch meets IEEE 802.3af/at/bt standard.

The switch supports 3 working modes through DIP switch: Default, VLAN and CCTV. Under VLAN and CCTV mode, it supports PoE watchdog features, which can detect and restart the camera automatically if it stops working. It can be widely used in video security monitoring systems, network projects, etc.


FEATURES AND HIGHTLIGHTS

Abundant Interfaces

● UTP3106-PSB/ UTP3106-PSD: 4*10/100BASE-T PoE RJ-45(Auto MDI/MDIX)

2*10/100BASE-T RJ-45(Auto MDI/MDIX)

● UTP3210-PSD: 8*10/100BASE-T PoE RJ-45(Auto MDI/MDIX)

2*10/100/1000BASE-T RJ-45(Auto MDI/MDIX)


PoE Mode DIP Switch

● UTP3210-PSD PoE mode can be set by DIP switch.

Mode 1: 45W max for each port.

Mode 2: 90W max for port 1, disabled PoE function for port 2, 45W max for ports 3 to 8 each.


One-key Smart Mode

● Default: All ports are free to communicate, transmission distance: 0~100m.

● VLAN: Downlink ports are isolated from each other, but can communicate with uplink ports. This mode supports PoE watchdog.

● CCTV: The transmission distance is extended up to 250m, but the rate is limited to 10Mbps. This mode supports PoE watchdog.



UTEPO unmanaged fast Ethernet PoE++ switches provide 1 10/100Base-T 802.3bt PoE++ RJ45 port, 3 or 7 10/100Base-T 802.3at PoE+ RJ45 ports, 2 10/100Base-T or 10/100/1000Base-T RJ45 ports. The PoE port 1 of switches supports 90W max of PoE output power, and the rest PoE ports support 45W max of PoE output power.


The switches support three working modes (Default, VLAN, CCTV). In VLAN and CCTV mode, the product supports the PoE watchdog function. In CCTV mode, the data transmission distance can be extended to 250 meters, ensuring stable and smooth data transmission over long distances, fully satisfying the security monitoring networking needs of families, SMBs, Soho, etc.




● IEEE 802.3bt PoE++ Solution

UTP3106-PSD:1*10/100BASE-T PoE++ RJ-45 Port + 3*10/100BASE-T PoE+ RJ-45 Ports + 2*10/100BASE-T RJ-45 Ports

UTP3210-PSD:1*10/100BASE-T PoE++ RJ-45 Port + 7*10/100BASE-T PoE+ RJ-45 Ports + 2*10/100/1000BASE-T RJ-45 Ports

Complying with the IEEE 802.3af/at/bt PoE standard, the PoE port 1 of switches supports 90W max of PoE output power, and the rest PoE ports support 45W max of PoE output power.




● PoE Mode DIP Switch (Only UTP3210-PSD supports)

UTP3210-PSD PoE mode can be set by the DIP switch.

PoE Mode 1: 45W max for each port.

PoE Mode 2: 90W max for port 1, disabled PoE function for port 2, 45W max for ports 3~8 each.




● Support Three Working Modes

The switches support three working modes, changed by the DIP switch.


>> Default

All prots could be a able to communicate with each other.



>> VLAN

Downlink ports are isolated from each other, but can communicate with uplink ports. This mode supports PoE watchdog.



>> CCTV

The transmission distance is extended up to 250m, but the rate is limited to 10Mbps. This mode supports PoE watchdog.





● PoE Watchdog

Support PoE watchdog under VLAN & CCTV mode. The switches could continuously detect PoE devices and reboot PoE devices automatically when a link failure or device malfunction is detected.




● Excellent Performance of Protection and Anti-interference

Support 4kV surge protection to ensure the stable operation.



● Lightweight Metal Casing

The switches are protected by a sturdy lightweight metal casing to ensure a long product life and high-performance cooling capability.



● Plug and Play

All the Ethernet ports support MDI/MDIX. The switches are easy setup with no software installation or configuration needed.






● 1*FE PoE++

● 3*FE PoE+

● 2*FE

● IEEE 802.3af/at/bt

● PoE mode: 90W max for port 1, 45W max for port 2~4 each

● PoE budget: 120W


● 1*FE PoE++

● 7*FE PoE+

● 2*GE

● IEEE 802.3af/at/bt

● PoE mode 1: 45W max for each port

● PoE mode 2: 90W max for port 1, 45W max for port 3~8 each

● PoE budget: 150W

Item

UTP3106-PSB

UTP3106-PSD

UTP3210-PSD

Hardware Specifications

Downlink Ports

4*10/100BASE-T PoE RJ-45(Auto-MDI/MDI-X)

8*10/100BASE-T PoE RJ-45(Auto-MDI/MDI-X)

Uplink Ports

2*10/100BASE-T RJ-45(Auto-MDI/MDI-X)

2*10/100/1000BASE-T RJ-45(Auto-MDI/MDI-X)

LED Indicators

1*PWR, power indicator

6*Link, port indicators

10*Link, port indicators

4*PoE, PoE indicators

8*PoE, PoE indicators

DIP Switch

Default: All ports are free to communicate, transmission distance: 0~100m.

VLAN mode: downlink ports are isolated from each other, but can communicate with uplink ports. This mode supports PoE watchdog.

CCTV mode: the transmission distance is extended up to 250m, but the rate is limited to 10Mbps. This mode supports PoE watchdog.

PoE Mode DIP Switch

/

Mode1: 45W max for each port

Mode2: 90W max for port 1, disabled PoE function for port 2, 45W max for ports 3 to 8 each.

Input Voltage

48~57V DC

Power Consumption

≤130W (Full load including PoE)

≤160W (Full load including PoE)

Dimensions (W*D*H)

122mm*92mm*25mm

180mm*92mm*25mm

Net Weight

0.21kg

0.31kg

Installation

Desktop/Wall mounted

Material

Metal shell

Color

Black

Switch Property

Standards

IEEE 802.3, IEEE 802.3u, IEEE 802.3x

Forwarding Modes

Store and Forward

MAC Table

2k

8k

Switching Capacity

1.2Gbps

5.6Gbps

Packet Forwarding Rate

0.8928Mpps

4.1664Mpps

Power Supply

PoE Power Supply Type

End-span

PoE Standard

IEEE 802.3af/at (PSE)

IEEE 802.3af/at/bt(PSE)

IEEE 802.3af/at/bt(PSE)

PoE Pin Assignment

1 port:1/2(-), 3/6(+)

1 port:3/6/4/5(+),1/2/7/8(-)

1 port:3/6/4/5(+),1/2/7/8(-)

2~4 ports:1/2(+), 3/6(-)

2~4 ports:1/2(+), 3/6(-)

2~8 ports:1/2(+), 3/6(-)

PoE Budget

30W max for ports 1 to 4 each

90W max for port 1, 45W max for ports 2 to 4 each

Mode1: 45W max for each port.

120W max for whole switch

120W max for whole switch

Mode2: 90W max for port 1, disabled PoE function for port 2, 45W max for ports 3 to 8 each
150W max for whole switch

Reliability

ESD

Contact Discharge: ±6kV, Air Discharge: ±8kV

Surge

4kV

Operating

-10°C~55°C, 5%~95% (Non-condensation)

Storage

-40°C~70°C, 5%~95% (Non-condensation)

Item

Quantity

Switch

1 pc

Power Adapter

1 pc

Power Cable

1 pc

Quick Installation Guide

1 pc
