 5.8G 900Mbps Long Range Outdoor CPE

5.8G 900Mbps Long Range Outdoor CPE

UBG3102-900H
  •  $row.goods_name
  •  $row.goods_name
  •  $row.goods_name
  •  $row.goods_name
  •  $row.goods_name
  •  $row.goods_name
  • Description
  • Specifications
  • Dimensions
  • Applications
  • Package
  • Download
  • Related Video
  • Related Product


OVERVIEW

The Outdoor CPE is designed to solutions for video surveillance transmission and wireless broadband access. It features with a high Gain directional antenna to provide an efficient way to pick up and maintain a stable long-range connection. Get rid of the transmission distance limitation and disadvantages of wired cables.


FEATURES AND HIGHLIGHTS

High Gain antenna & Long distance transmission

• UBG3102-300: 8dBi Gain 2*2MIMO antenna, up to 1.5km transmission range

• UBG3102-900: 12dBi Gain 2*2MIMO antenna, up to 2km transmission range

• UBG3102-900H: 14dBi Gain 2*2MIMO antenna, up to 4km transmission range

• UBG3302-900H: 15dBi Gain 2*2MIMO antenna, up to 6km transmission range


Professional Outdoor Design

• Working temperature:-30~55°C

• IP65

• 6kV ESD protection


Easy-to-use

• One-Key to pair

• WEB management

• AC management





UTEPO Outdoor CPEs are designed for video surveillance transmission and wireless broadband access. Equipped with high-gain directional antennas, they provide an efficient way of picking up and maintaining a stable long-range connection. On the other hand, they effectively help get rid of the transmission distance limitation and disadvantages of wired cables. UTEPO CPEs are good choices for daily uses in the way of point-to-point, which not only can help extend your home's network to a second building but also can be used for monitoring. And you can use them in the garage, barn, store, warehouse, farm, and some other place at your convenience.



● One-key Pairing Design

Without the complicated WEB configuration, you can just press the physical button to set the same channel to achieve the pairing between two or more CPEs.


CPE

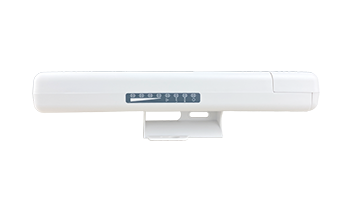

● User-friendly Design for Visual Experiences

You can know the signal strength status, WAN status, LAN status, and power status of the CPE through the indicator lights.


CPE

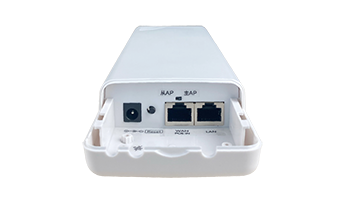

● Support DC/PoE Powered

Support both DC and PoE powered, more convenient and flexible for installation.


CPE



● Ultra Long Transmission Distance

UTEPO CPEs adopt high gain directional antenna to provide an efficient way to pick up and maintain a stable signal for a wireless network up to 1.5km/2km/4km/6km.


CPE



● WEB Management

UTEPO CPEs come with an advanced WEB management function that helps users efficiently manage the device through a single PC.


CPE



● Outdoor Design

Equipped with the IP65 waterproof enclosure and high-quality hardware design, UTEPO CPEs can work steadily in various harsh environments.


CPE






CPE





Ethernet Port 1*10/100Base-T
PoE RJ-45 WAN
+1*10/100Base-T
RJ-45 LAN
1*10/100Base-T
PoE RJ-45 WAN
+1*10/100Base-T
RJ-45 LAN
1*10/100Base-T
PoE RJ-45 WAN
+1*10/100Base-T
RJ-45 LAN
1*10/100/1000Base-T
PoE RJ-45 WAN
1*10/100/1000Base-T
RJ-45 LAN
Frequency Range 2.412 GHz ~
2.484GHz
5.150GHz ~
5.850GHz
5.150GHz ~
5.850GHz
5.150GHz ~
5.850GHz
Compliant Standards IEEE 802.11b/g/n IEEE 802.11a/n/ac IEEE 802.11a/n/ac IEEE 802.11a/n/ac
Compliant Standards 8dBi 12dBi 14dBi 15dBi
Max Wireless Rate 300Mbps 867Mbps 867Mbps 867Mbps
Max Transmission Range 1.5km 2km 4km 6km

Items

UBG3102-900H

UBG3302-900H

Hardware Specifications

Ethernet Port

1*10/100Base-T PoE RJ-45 WAN
(Auto-MDI/MDI-X)
1*10/100Base-T RJ-45 LAN(Auto-MDI/MDI-X)

1*10/100/1000Base-T PoE RJ-45 WAN
(Auto-MDI/MDI-X)
1*10/100/1000Base-T RJ-45 LAN(Auto-MDI/MDI-X)

Power Method

PoE: 24V, 0.5A
DC: 12V, 1A

PoE: 24V, 0.5A or 48V, 0.5A
DC: 12V, 1A

Frequency Range

5.150GHz ~ 5.850GHz

5.150GHz ~ 5.850GHz

Compliant Standards

IEEE 802.11a/n/ac

IEEE 802.11a/n/ac

Antenna Gain

14dBi

15dBi

Maximum Wireless
Rate

867Mbps

867Mbps

Flash

8MB

8MB

RAM

64MB

128MB

LED Indicator

1*Power supply indicator
1*Wi-Fi state indicator
1*WAN port state indicator
1*LAN port state indicator
4*Signal strength indicator

1*System working indicator
1*Wi-Fi state indicator
1*WAN port state indicator
1*LAN port state indicator
4*Signal strength indicator

Init Button

Short press to pair
Long press >10s to initialize the system

Long press >10s to initialize the system

Cable

Cat5 or better

Dimensions (L*W*H)

237mm*79.1mm*56.1mm

260mm*85mm*45mm

Power Consumption

≤8W

≤15W

Reliability

ESD

6kV

Surge

2kV

Protection

IP65

Operating

-30°C~55°C, 5%~95% (Non-condensation)

Storage

-40°C~70°C, 5%~95% (Non-condensation)

Software Architecture

Operating mode

AP mode, Repeater mode

Wi-Fi

SSID number: 4
Support SSID hidden
Support Wireless Security: OPEN, WPA, WPA2, WPA-PSK, WPA2-PSK
Support MAC address filter
Support Wi-Fi Schedule
Support wireless client isolation
Support transmission power setting
Support wireless access number control

Network

Support VLAN
Support DHCP server

System Management

Support system settings backup & restore
Support system reboot & schedule reboot
Support web upgrading
Support history record, journal management
