OVERVIEW

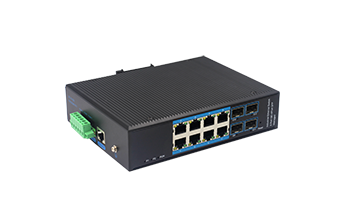

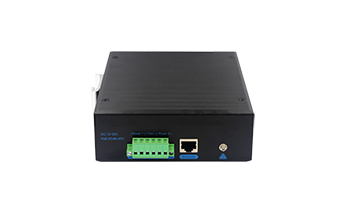

UTP6312S-PSB is Industrial 8-Port Gigabit PoE+ 4-Port SFP L2 Managed Ethernet Switch.
This switch provides 8 Gigabit Ethernet RJ-45 ports and 4 Gigabit SFP uplink ports. It meets IEEE 802.3af/at standard. All RJ-45 ports support Power-over-Ethernet (PoE+) and deliver up to 30W power per port. The switch has extensive L2 management functions, such as 802.1Q VLAN, 802.1P QoS, STP/RSTP, Link aggregation, DHCP and PoE control. It can be easily managed via a WEB GUI (http/https), CLI (telnet/ssh/console) or SNMP.


FEATURES AND HIGHLIGHTS

Abundant Interfaces

8*10/100/1000 Base-T PoE RJ-45 ports

4*1000 Base-X SFP ports

1*RJ-45 console port


Industrial Design

Working temperature: -40℃~75℃

Redundant power supply

8kV contact discharge, 12kV air discharge ESD protection

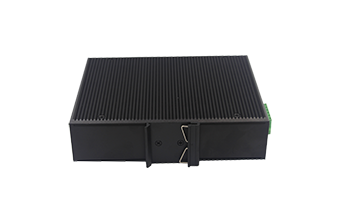

Fan-less metal shell design

DIN-rail installation


Layer 2 Management Function

802.1Q VLAN

802.1P QoS

SNMP

STP/RSTP

ERPS

DHCP snooping




Designed to be installed in industrial-demanding environments, UTP6306S-PSB and UTP6312S-PSB provide 4/8 Gigabit Ethernet RJ-45 ports and 2/4 Gigabit SFP uplink ports. The switches meet IEEE 802.3af/at standard. All RJ-45 ports support PoE and deliver up to 30W power per port. What’s more, the switches support extensive L2 management functions, such as 802.1Q VLAN, 802.1P QoS, STP/RSTP, Link aggregation, DHCP and PoE control, and can be easily managed via a WEB GUI (HTTP/HTTPS), CLI (telnet/ssh/console) or SNMP.


Key Features


Abundant Interfaces

UTP6306S-PSB: 4 Gigabit RJ-45 PoE ports and 2 Gigabit SFP uplink ports.

UTP6312S-PSB: 8 Gigabit RJ-45 PoE ports and 4 Gigabit SFP uplink ports. The two models also provide the RJ45 console interface for the switch's basic management and setup.



Intelligent PoE Technology

The switches provide PoE and deliver up to 30W power per port when connecting to PDs. With the built-in manageable PoE function, users can set the PoE for each port and check the PoE status freely through the web.



Layer 2 Management Function

Support L2 management functions, such as 802.1Q VLAN, 802.1P QoS, STP/RSTP, Link aggregation, DHCP and PoE control.



DC / DC Redundant Power Supply

Industrial Design

Support dual redundant DC48~57V power supply for high availability applications.

Support 8kV contact discharge, 12kV air discharge ESD protection, and wide operating temperature(-40℃~75℃). The switches adapt to harsh environments.




Application


Specification



4*GE PoE + 2*GF

IEEE 802.3af/at

L2 management

Redundant power supply

-40℃~75℃ operating temperature




8*GE PoE + 4*GF

IEEE 802.3af/at

L2 management

Redundant power supply

-40℃~75℃ operating temperature

Items

Specifications

Hardware Specifications

Downlink Ports

8*10/100/1000Base-T PoE+ RJ-45

Uplink Ports

4*100/1000Base-X SFP

Console Port

1*RJ-45 console port

Init Button

Short press to restart the switch

long press >5s to initialize the system

Led Indicators

2*power indicators

1*system indicator

Cable

Cat5 or better

Dimensions (W*D*H)

176mm*136mm*46.5mm

Net Weight

0.9kg

Input Voltage

Power 1 (Main): 48~57V DC

Power 2 (Backup): 48~57V DC

Power Consumption

10W (Full load, not including PoE)

Installation

DIN-rail

Material

Metal shell

Switch Property

Forwarding Modes

Store and Forward

Switching Capacity

24Gbps / non-blocking

Packet Forwarding Rate

17.9Mpps

MAC Table

8k, supported auto learning

Packet Buffer

4Mbit

Jumbo Frame

9kB

PoE

PoE device

Endpoint PSE (Power Sourcing Equipment)

PoE Standard

IEEE 802.3af/at

PoE Pin Assignment

1/2(+), 3/6(-)

PoE Power Output

46~55V DC

PoE Budget

30W max for each port

240W max for whole switch

Standard Conformance

Standards Compliance

IEEE 802.1p Priority Queuing

IEEE 802.1Q VLAN tagging

IEEE 802.1D Spanning Tree Algorithm

IEEE 802.1w Rapid Spanning Tree

IEEE 802.1x Authentication

IEEE 802.3ad Link Aggregation

IEEE 802.3x Flow Control

IEEE 802.3 Ethernet

IEEE 802.3u Fast Ethernet

IEEE 802.3z Gigabit Ethernet

IEEE 802.3af Power Over Ethernet

IEEE 802.3at Power Over Ethernet

EMC

EMC

FCC 47 CFR Part 15 Class A

EN55032 Class A

IEC61000-4-2,Level 3: Contact Discharge: ±8kV, Air Discharge: ±12kV

IEC61000-4-3,Level 3: 10V/m

IEC61000-4-4,Level 2: Power Port: ±4kV; Data Port: ±2kV

IEC61000-4-5,Power Port: Line to Line ±2kV, Line to Earth ±4kV; Data Port: ±2kV

IEC61000-4-6,3V (10kHz-150kHz); 10V (150kHz-80MHz)

LVD

LVD

EN 62368-1:2014

EN 62328-A11:2017

Environments

Operating

Temperature: -40℃~75℃

Relative Humidity: 5%~95% (Non-condensation)

Storage

Temperature: -40℃~85℃

Relative Humidity: 5%~95% (Non-condensation)

Certifications

Certifications

CE, FCC

Software Architecture

Information and Status

System Information

• System, Hardware, Time and Firmware

IP Status

• IP Interfaces, IP Routes and ARP Table

SysLog

• System Log Information

Detailed SysLog

• ID and Message

MAC Table

• MAC Address Table: Type, VLAN, MAC Address, CPU and Port Number

VLANs

• Membership and Ports

Ports

• Traffic Overview and Detailed Statistics

LACP

• System Status, Port Status and Port Statistics

Thermal Protection

• Thermal Protection Port Status

Green Ethernet

• Port Power Savings Status

PoE Status

• Power Over Ethernet Status

LLDP

• Neighbors, PoE, Port Statistics

Loop Protection

• Loop Protection Status

Spanning Tree

• Bridge Status, Port Status and Port Statistics

IGMP Snooping

• IGMP Snooping Status, Groups Information and IPv4 SFM Information

MLD Snooping

• MLD Snooping Status, Groups Information and IPv6 SFM Information

DHCP

• Server, Snooping Table, Relay Statistics and Detailed Statistics

Security

• Port Security, Access Management Statistics, 802.1X, ACL Status and AAA

QoS

• QoS Statistics and QCL Status

Network Admin

IP Config

• IP Configuration, IP Interfaces and IP Routes

IP Status

• IP Interfaces, IP Routes and ARP Table

DHCP Server

• DHCP Server Mode Configuration, Excluded IP and Pool

NTP

• NTP Configuration

Timezone

• System Timezone Offset and UTC time

SNMP

• System, Trap, Communities, Users, Groups, Views and Access

SysLog

• System Log Configuration

Port Configure

Ports

• Port Configuration

Aggregation

• Static and LACP

Mirroring

• Mirror and Mirror Port Configuration

Thermal Protection

• Thermal Protection Configuration

Green Ethernet

• Port Power Savings and Port Configuration

DDM

• DDM Configuration, DDM Overview and DDM Detailed

PoE

PoE Setting

• Power Over Ethernet, PoE Power Supply and PoE Port Configuration

PoE Status

• Power Over Ethernet Status

Advanced Configure

MAC Table

• Aging Configuration, MAC Table Learning and Static MAC Table Configuration

PTP

• PTP Clock Configuration and PTP Status

VLANs

• Global VLAN and Port VLAN Configuration

Voice VLAN

• Voice VLAN Configuration and Voice VLAN OUI Table

GVRP

• GVRP Global and Port Configuration

Advanced Configure

Port Isolation

• Port Group and Port Isolation

Loop Protection

• General Settings and Port Configuration

Spanning Tree

• Bridge Settings, MSTI Mapping, MSTI Priorities, CIST Ports and MSTI Ports

IPMC Profile

• Profile Table and Address Entry

MEP

• Maintenance Entity Point

ERPS

• Ethernet Rapid Ring Protection Switching

IGMP Snooping

• Basic Configuration, VLAN Configuration and Port Filtering Profile

IPv6 MLD Snooping

• Basic Configuration, VLAN Configuration and Port Filtering Profile

LLDP

• LLDP Parameters and LLDP Interface Configuration

Security Configure

Users

• Users Configuration

Privilege Levels

• Privilege Level Configuration

SSH

• SSH Configuration

HTTPS

• HTTPS Configuration

Port Security Limit

• System and Port Configuration

Access Management

• Access Management Configuration

802.1X

• Network Access Server Configuration

ACL

• Ports, Rate Limiters and Access Control List

DHCP

• Snooping Setting, Snooping Table, Relay, Relay Statistics and Detailed Statistics

IP&MAC Source Guard

• IP Source Guard Configuration, Static Table and Dynamic Table

ARP Inspection

• Port Configuration, VLAN Configuration, Static Table and Dynamic Table

AAA

• RADIUS and TACACS+

QoS Configure

Port Classification

• QoS Ingress Port Classification

Port Policing

• QoS Ingress Port Policers

Queue Policing

• QoS Ingress Queue Policers

Port Scheduler

• QoS Egress Port Schedulers

Port Shaping

• QoS Egress Port Shapers

Port Tag Remarking

• QoS Egress Port Tag Remarking

Port DSCP

• QoS Port DSCP Configuration

DSCP-Based QoS

• DSCP-Based QoS Ingress Classification

DSCP Translation

• DSCP Translation

DSCP Classification

• DSCP Classification

QoS Control List

• QoS Control List Configuration

Storm Policing

• Global Storm Policer Configuration

Diagnostics

Ping

• ICMP Ping

Cable Diagnostics

• VeriPHY Cable Diagnostics

CPU Load

• CPU Load Information

Maintenance

Restart Device

• Restart the Device

Factory Defaults

• Factory Defaults

Firmware Upgrade

• Software Upload

Firmware Select

• Software Image Selection

Configuration

• Download, Upload, Activate and Delete

dimension

Items

Quantity

Switch

1 set

Plug Connector

1 pc

Quick Installation Guide

1 pc
