Industrial 4-Port Gigabit PoE+ 2-Port Gigabit SFP L2 Managed Ethernet Switch
Home Products PoE Industrial PoE/PoE+ L2/L3 Managed
 Industrial 4-Port Gigabit PoE+ 2-Port Gigabit SFP L2 Managed Ethernet Switch (Off Production)

Industrial 4-Port Gigabit PoE+ 2-Port Gigabit SFP L2 Managed Ethernet Switch (Off Production)

UTP6306S-PSB
  •  $row.goods_name
  •  $row.goods_name
  •  $row.goods_name
  •  $row.goods_name
  • Description
  • Specifications
  • Dimensions
  • Applications
  • Package
  • Download
  • Related Video
  • Related Product

OVERVIEW

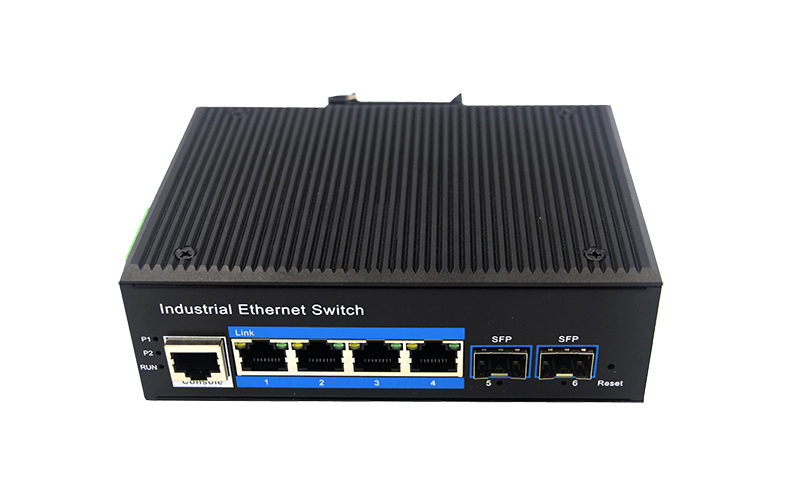

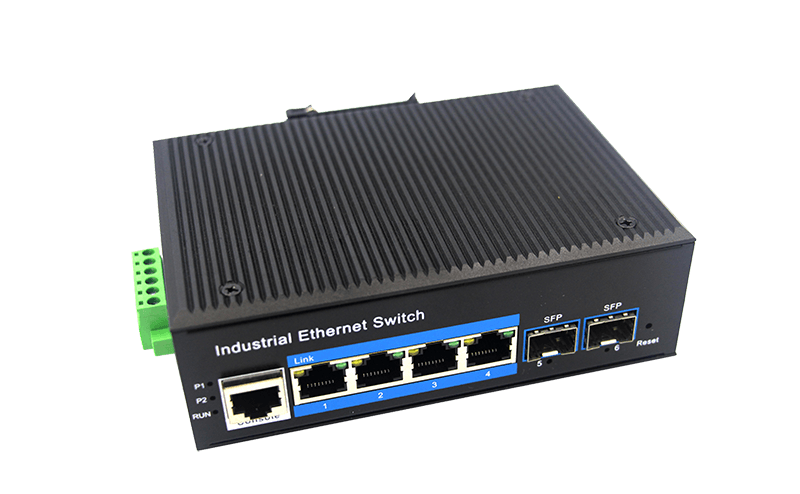

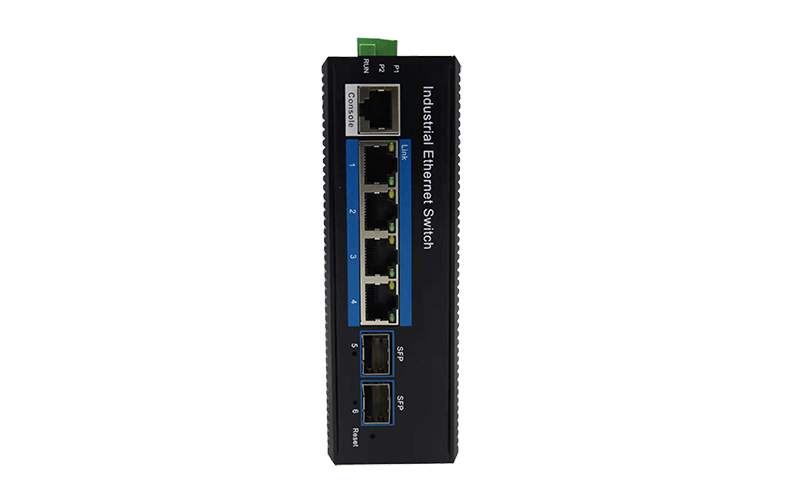

UTP6306S-PSB is Industrial 4-Port Gigabit PoE+ 2-Port Gigabit SFP L2 Managed Ethernet Switch.

This switch provides 4 Gigabit Ethernet RJ-45 ports and 2 Gigabit SFP uplink ports. It meets IEEE 802.3af/at standard. All RJ-45 ports support Power-over-Ethernet (PoE+) and deliver up to 30W power per port.

The switch has extensive L2 management functions, such as 802.1Q VLAN, 802.1P QoS, STP/RSTP, Link aggregation,DHCP and PoE control. It can be easily managed via a WEB GUI (http/https), CLI (telnet/ssh/console) or SNMP.


FEATURES AND HIGHLIGHTS

Abundant Interfaces

•  4*10/100/1000 Base-T PoE+ RJ-45 ports

•  2*1000 Base-X SFP ports

•  1*RJ-45 Console port


Industrial Design

•  Working temperature:-40〜75℃

•  Redundant power supply

•  8kV contact discharge, 12kV air discharge ESD protection

•  Fan-less metal shell design

•  DIN-rail installation


Layer 2 Management Function

•  802.1Q VLAN

•  802.1P QoS

•  SNMP

•  STP/RSTP/MSTP

•  ERPS

•  DHCP snooping




Designed to be installed in industrial-demanding environments, UTP6306S-PSB and UTP6312S-PSB provide 4/8 Gigabit Ethernet RJ-45 ports and 2/4 Gigabit SFP uplink ports. The switches meet IEEE 802.3af/at standard. All RJ-45 ports support PoE and deliver up to 30W power per port. What’s more, the switches support extensive L2 management functions, such as 802.1Q VLAN, 802.1P QoS, STP/RSTP, Link aggregation, DHCP and PoE control, and can be easily managed via a WEB GUI (HTTP/HTTPS), CLI (telnet/ssh/console) or SNMP.


Key Features


Abundant Interfaces

UTP6306S-PSB: 4 Gigabit RJ-45 PoE ports and 2 Gigabit SFP uplink ports.

UTP6312S-PSB: 8 Gigabit RJ-45 PoE ports and 4 Gigabit SFP uplink ports. The two models also provide the RJ45 console interface for the switch's basic management and setup.



Intelligent PoE Technology

The switches provide PoE and deliver up to 30W power per port when connecting to PDs. With the built-in manageable PoE function, users can set the PoE for each port and check the PoE status freely through the web.



Layer 2 Management Function

Support L2 management functions, such as 802.1Q VLAN, 802.1P QoS, STP/RSTP, Link aggregation, DHCP and PoE control.



DC / DC Redundant Power Supply

Industrial Design

Support dual redundant DC48~57V power supply for high availability applications.

Support 8kV contact discharge, 12kV air discharge ESD protection, and wide operating temperature(-40℃~75℃). The switches adapt to harsh environments.




Application


Specification



4*GE PoE + 2*GF

IEEE 802.3af/at

L2 management

Redundant power supply

-40℃~75℃ operating temperature




8*GE PoE + 4*GF

IEEE 802.3af/at

L2 management

Redundant power supply

-40℃~75℃ operating temperature

Items

UTP3306TS-PSD

Hardware Specifications

Downlink Port

4*10/100/1000 Base-T PoE++ RJ-45(Auto-MDI/MDI-X)

Uplink Port

1*10/100/1000 Base-T RJ-45
1*1000 Base-X SFP

Led Indicators

1*PWR, power supply indicators
1*Link/Act, SFP port state indicators

Dimensions (W*D*H)

294mm*180mm*44mm

Input Voltage

100~240V AC, 50~60Hz

Power Consumption

≤370W (Full load including PoE)

Material

Metal shell

Installation

Rack/Desktop/Wall mounted

Switch Property

Standards

IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3x, IEEE 802.1D, IEEE 802.3af, IEEE 802.3at,
IEEE 802.3bt

Forwarding Modes

Store and Forward

MAC Table

2k, support auto learning

Switching Capacity

12Gbps/non-blocking

Packet Forwarding Rate

8.928Mpps

Port Buffer

1MB

Jumbo Frame

9716 Bytes

Power Supply

PoE Standard

IEEE 802.3af/at/bt

PoE Power Supply Type

End-span

PoE Pin Assignment

3/6/4/5(+), 1/2/7/8(-)

PoE Budget

90W max for each port, 360W max for whole switch

Reliability

Operating

-10℃~50℃, 5%~95% (Non-condensation)

Storage

-40℃~70℃, 5%~95% (Non-condensation)

Certifications

Certifications

CE, FCC

UTP6306S-PSB

Information and Status

System Information

System, Hardware, Time and Firmware

IP Status

IP Interfaces, IP Routes and  ARP Table

SysLog

System Log Information

Detailed SysLog

ID and Message

MAC Table

MAC Address Table: Type, VLAN, MAC Address, CPU and Port Number

VLANs

Membership and Ports

Ports

Traffic Overview and Detailed Statistics

LACP

System Status, Port Status and Port Statistics

Thermal Protection

Thermal Protection Port Status

Green Ethernet

Port Power Savings Status

PoE Status

Power Over Ethernet Status

LLDP

Thermal Protection Port Status

Loop Protection

Loop Protection Status

Spanning Tree

Bridge Status, Port Status and Port Statistics

IGMP Snooping

IGMP Snooping Status, Groups Information and IPv4 SFM Information

MLD Snooping

MLD Snooping Status, Groups Information and IPv6 SFM Information

DHCP

Server, Snooping Table, Relay Statistics and Detailed Statistics

Security

Port Security, Access Management Statistics, 802.1X, ACL Status and AAA

QoS

QoS Statistics and QCL Status

Network Admin

IP Config

IP Configuration, IP Interfaces and IP Routes

IP Status

IP Interfaces, IP Routes and ARP Table

DHCP Server

DHCP Server Mode Configuration, Excluded IP and Pool

NTP

NTP Configuration

Timezone

System Timezone Offset and UTC time

SNMP

System, Trap, Communities, Users, Groups, Views and Access

SysLog

System Log Configuration

Port Configure

Ports

Port Configuration

Aggregation

Static and LACP

Mirroring

Mirror and Mirror Port Configuration

Thermal Protection

Thermal Protection Configuration

Green Ethernet

Port Power Savings and Port Configuration

DDM

DDM Configuration, DDM Overview and DDM Detailed

PoE

PoE Setting

Power Over Ethernet, PoE Power Supply and PoE Port Configuration

PoE Status

Power Over Ethernet Status

Advanced Configure

MAC Table

Aging Configuration, MAC Table Learning and Static MAC Table Configuration

PTP

PTP Clock Configuration and PTP Status

VLANs

Global VLAN and Port VLAN Configuration

Voice VLAN

Voice VLAN Configuration and Voice VLAN OUI Table

GVRP

GVRP Global and Port Configuration

Advanced Configure

Port Isolation

Port Group and Port Isolation

Loop Protection

General Settings and Port Configuration

Spanning Tree

Bridge Settings, MSTI Mapping, MSTI Priorities, CIST Ports and MSTI Ports

IPMC Profile

Profile Table and Address Entry

MEP

Maintenance Entity Point

ERPS

Ethernet Rapid Ring Protection Switching

IGMP Snooping

Basic Configuration, VLAN Configuration and Port Filtering Profile

IPV6 MLD Snooping

Basic Configuration, VLAN Configuration and Port Filtering Profile

LLDP

LLDP Parameters and LLDP Interface Configuration

Security Configure

Users

Users Configuration

Privilege Levels

Privilege Level Configuration

SSH

SSH Configuration

HTTPS

HTTPS Configuration

Port Security Limit

System and Port Configuration

Access Management

Access Management Configuration

802.1X

Network Access Server Configuration

ACL

Ports, Rate Limiters and Access Control List

DHCP

IP Source Guard Configuration, Static Table and  Dynamic Table

IP&MAC Source Guard

Snooping Setting, Snooping Table, Relay, Relay Statistics and Detailed Statistics

ARP Inspection

Port Configuration, VLAN Configuration, Static Table and Dynamic Table

AAA

RADIUS and TACACS+

QoS Configure

Port Classification

QoS Ingress Port Classification

Port Policing

QoS Ingress Port Policers

Queue Policing

QoS Ingress Queue Policers

Port Scheduler

QoS Egress Port Schedulers

Port Shaping

QoS Egress Port Shapers

Port Tag Remarking

QoS Egress Port Tag Remarking

Port DSCP

QoS Port DSCP Configuration

DSCP-Based QoS

DSCP-Based QoS Ingress Classification

DSCP Translation

DSCP Translation

DSCP Classification

DSCP Classification

QoS Control List

QoS Control List Configuration

Storm Policing

Global Storm Policer Configuration

Diagnostics

Ping

ICMP Ping

Cable Diagnostics

Cable Status

CPU Load

CPU Load Information

Maintenance

Restart Device

Restart the Device

Factory Defaults

Factory Defaults

Firmware Upgrade

Software Upload

Firmware Select

Software Image Selection

Configuration

Download, Upload, Activate and Delete

Items

Quantity

Switch

1 set

Plug Connector

1 pc

Quick Installation Guide

1 pc
