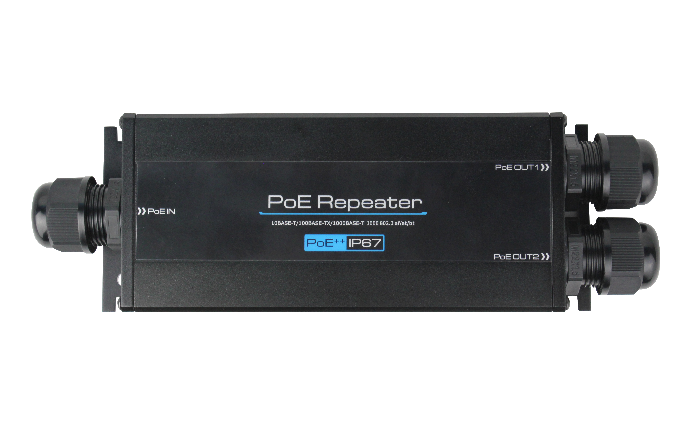

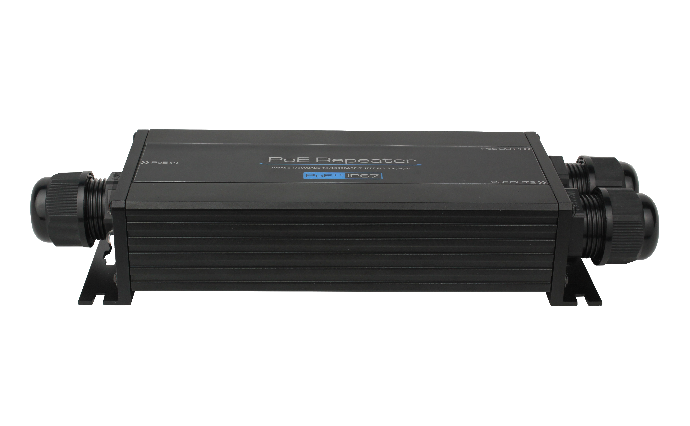

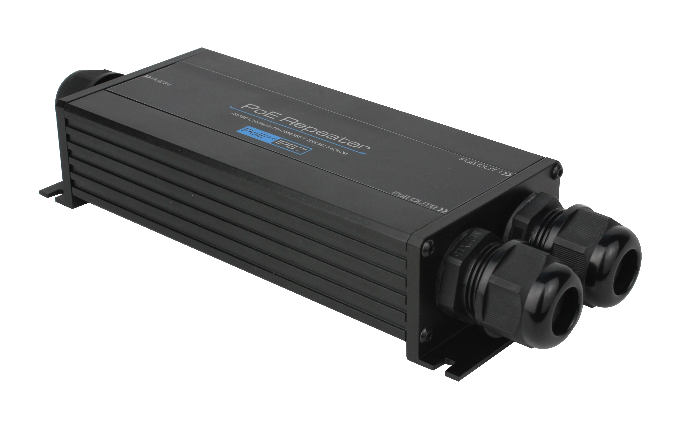

The product is an Industrial IP67 1-Port Gigabit PoE++ to 2-Port Gigabit PoE++ Repeater, using network cable power supply technology, and can extend 1000Mbps Ethernet signal to 100m and provide 50~57V standard PoE for powered devices.

The repeater is industrial grade, with IP67 waterproof design and wide working temperature -20~75℃. It can withstand harsh environmental tests, and is suitable for security monitoring and network engineering.


Provide 10/100/1000Mbps Ethernet ports

• UPR6303-PSC-PDD: 1* input port, 2* output ports

Great PoE Compatibility

• All ports comply with IEEE802.3af, IEEE802.3at, IEEE802.3bt

• PoE output port can auto detect powered device and the output power

• Automatically distribute PoE for 1 or 2 PoE output ports as demand of the powered device

• Extends both Ethernet data and PoE to an additional 100 meters

Industrial Case and Installation

• Waterproof IP67-rated and IK10 aluminum case

• Wall-mount design

• Supports 6kV surge immunity and 8kV ESD protection

• Wide working temperature: -20~75℃

• No external power cable required for installation

• Plug and play installation

Strong Layer 2 Features

• Supports 2k MAC addresses, which allows the connection of more devices

• 10kB jumbo frame support in 1000Mbps duplex mode

• Automatic address learning and address aging

• IEEE 802.3x pause frame for full duplex, back pressure for half duplex

The UTEPO Industrial IP67 2-Port Gigabit PoE++ Repeater utilizes cutting-edge PoE technology, allowing it to extend 1000Mbps Ethernet signals up to 100 meters. With its ability to provide 50~57V standard PoE to connected devices, it offers a dependable and high-performing solution for extending PoE networks.

In addition to its PoE capabilities, this product also supports various Layer 2 switching functions, including full duplex mode, jumbo frame, automatic address learning & aging. These features enhance its versatility and enable efficient data transmission.

Designed with a durable IP67 waterproof enclosure, this product can withstand extreme temperatures ranging from -20℃ to 75℃. It has undergone rigorous environmental testing, making it an excellent choice for security monitoring and network engineering applications.

Compatible with IEEE 802.3af/at/bt

The repeater is capable of providing a maximum power of 60.9W (50V~57V) to IP cameras, APs, PTZ cameras, LED lights, and all-in-one PCs when the input port is connected to a PoE switch or injector, obtaining a maximum of 90W PoE power input.

Support Automatic PoE Power Distribution

The repeater, which has one PoE input and two PoE outputs, is capable of automatically distributing PoE power. When the total PoE budget is insufficient, the repeater will prioritize providing power to the initial device that was connected.

Long-distance Transmission

The repeater is designed to facilitate cascade connection with a maximum of 3 pieces, thereby extending the transmission range to 400 meters. Further information on the performance of transmission can be found in our technical documents.

Plug and Play, Easy Installation

The repeater supports easy installation for setting up a range of outdoor PoE devices. It includes three auto-negotiation 10/100/1000BASE-T RJ45 connectors and three waterproof junctions for direct connection. The waterproof joints protect the standard RJ45 connector from harsh weather conditions, ensuring a secure and long-lasting connection.

Waterproof Operating LED Indicator

The waterproof operating LED indicator of the repeater ensures user convenience and ease of use.

Adapt to the Harsh Environment

The industrial IP67 enclosure ensures exceptional performance against electromagnetic interference, safeguards against dust and water, and maintains stable operation within the temperature range of -20℃ to 75℃ for the repeater.

● 1*PoE++ Input + 2*PoE++ Output

● Support 90W max input PoE power

● Max output PoE power is 60.9W

● IP67

● Operating temperature: -20℃ ~ 75℃

● 6kV surge immunity, 8kV ESDimmunity



Ethernet Ports

PoE Input Port

1*10/100/1000Base-TX RJ-45

PoE Output Port

2*10/100/1000Base-TX RJ-45


PoE Standard

IEEE 802.3af/at/bt

PoE Power Supply Type

End-span, Mid-span

PoE Pin Assignment

1/2(-), 3/6(+), 4/5 (+), 7/8 (-)

Input Voltage

50~57V DC, max 90W

PoE Output Power


Single Port PoE Output Power


Switch Property


IEEE 802.3,IEEE 802.3u, IEEE 802.3ab

Forwarding Modes

Store and Forward

Transmission Distance

Extend 100m by 1pcs, max. 400m when 3pcs in cascade

MAC Table


Switching Capacity


Packet Forwarding Rate


Flow Control

IEEE 802.3x pause frame for full duplex, Back pressure for half duplex

Jumbo Frame



Surge Immunity

6kV, Standard: IEC61000-4-5

ESD Protection

6kV Contact Discharge, 8kV Air Discharge, Standard: IEC61000-4-2


IP67-rated and IK10 aluminum case

Operating Temperature


Storage Temperature


Operating Humidity

0~95% (No condensation)

Physical Parameters

Dimensions (W*D*H)


Net Weight



Metal Shell






Dimension UPR6303-PSC-PDD




1 pc

Mounting Accessory

1 set

Quick Installation Guide

1 pc
