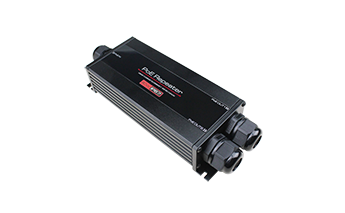

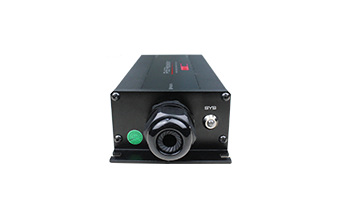

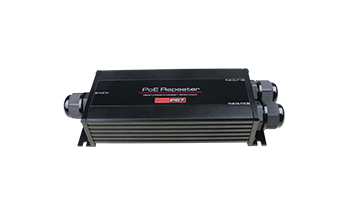

 Industrial 1-Port 802.3bt PoE++ (90W) to 2-Port 802.3bt/at/af Gigabit PoE Repeater

Industrial 1-Port 802.3bt PoE++ (90W) to 2-Port 802.3bt/at/af Gigabit PoE Repeater

UTP7202GR-BTPOE(90)
  •  $row.goods_name
  •  $row.goods_name
  •  $row.goods_name
  •  $row.goods_name
  • Description
  • Specifications
  • Dimensions
  • Applications
  • Package
  • Download
  • Related Video
  • Related Product

Overview

This series of IP67 Gigabit 802.3bt PoE Ethernet repeaters can extend 1000Mbps Ethernet signal to 100m and provide 50~57V standard PoE for powered devices. This series of products are industrial level, with IP67 waterproof design and wide working temperature -40~75℃. They can withstand harsh environmental tests and are suitable for security monitoring and network engineering.

This series contains three models:

• UTP7201GR-BTPOE(60): 1 PoE output port, maximum input power 60W.

• UTP7202GR-BTPOE(60): 2 PoE output ports, maximum input power 60W.

• UTP7202GR-BTPOE(90): 2 PoE output ports, maximum input power 90W.


Features and Highlights

• Provide 10/100/1000Mbps Ethernet ports

• UTP7201GR-BTPOE(60): 1* input port, 1* output port.

• UTP7202GR-BTPOE(60)/(90): 1* input port, 2* output ports.


Great PoE Compatibility

• All ports comply with IEEE802.3af, IEEE802.3at, IEEE802.3bt.

• PoE output port can auto-detect the powered device and the output power.

• Automatically distribute PoE for 2 PoE output ports as the demand of the powered device.

• Extends both Ethernet data and PoE to an additional 100 meters.


Industrial Case and Installation

• Waterproof IP67-rated aluminum housing.

• Wall-mount design.

• Supports 6kV surge immunity and 8kV ESD protection.

• Wide working temperature: -40~75℃.

• No external power cable required for installation .

• Plug and play installation.


Strong Layer 2 Features

• Supports 8k MAC addresses, which allows the connection of more devices.

• 10kB jumbo frame support in 1000Mbps duplex mode.

• Automatic address learning and address aging.

• IEEE 802.3x pause frame for full-duplex, backpressure for half-duplex.

pic
pic
The UTEPO waterproof IP67 industrial BT PoE repeaters are designed for point to point and point to multipoint PoE application. The PoE repeaters can obtain 60W/90W PoE max from input port by PoE switch or PoE injector, and supply max power up to 58W/81W (50V~57V), extending both data and PoE to additional 100 meters over cat.5e/6/7 cables. Also, the repeaters are compatible with PoE standard IEEE 802.3af/at/bt, and can automatically distribute PoE on the two output ports. And these repeaters come with a waterproof operating LED indicator, providing a user-friendly experience. In conclusion, the repeaters provide simple and flexible solutions for security industry, wireless industry, LED light industry, etc
pic
01 / Compatible with IEEE 802.3af/at/bt
Obtaining 60W/90W PoE max from input port by PoE switch or PoE injector, under the distance of over 100 meters, the repeaters can supply max power up to 58W/81W (50V~57V) to IP camera, AP, PTZ camera, LED light, all-in-one PC, etc.
pic
02 / Support Automatic PoE Power Distribution
The repeaters (1*PoE Input + 2*PoE Output) support automatic PoE power distribution. And the repeaters would preferentially supply power to the first connected device when the total PoE budget is not enough.
pic
03 / Plug and Play, Easy Installation
The repeaters support easy installation of desktop or wall-mounted by simple plug and play. Also, you can put RJ45 plug through the joint while it won't influence the water-proof function.
pic
04 / New Design with a Waterproof Operating LED Indicator
These repeaters come with a waterproof operating LED indicator, providing a user-friendly experience.
pic
05 / Adapt to the Harsh Environment
With the industrial IP67 case, the repeaters provide excellent performance against electromagnetic interference, can protect themselves from dust and water, and keep normal operation under the temperature range from -40℃ to 75℃.
pic
pic
With UTEPO PoE repeaters, you can extend and expand network infrastructures without changes to your existing network system, or having to add any cables and other related components and parts.
pic
pic
pic
pic
UTP7201GR-BTPOE(60)
1*PoE Input + 1*PoE Output
Support 60W max input PoE
power.
Max output PoE power is 58W.
IP67
Operating temperature:
-40℃ ~ 75℃
6kV surge immunity, 8kV ESD
immunity
pic
pic
UTP7202GR-BTPOE(60)
1*PoE Input + 2*PoE Output
Support 60W max input PoE
power.
Max output PoE power is 58W.
IP67
Operating temperature:
-40℃ ~ 75℃
6kV surge immunity, 8kV ESD
immunity
pic
pic
UTP7202GR-BTPOE(90)
1*PoE Input + 2*PoE Output
Support 90W max input PoE
power.
Max output PoE power is 81W.
IP67
Operating temperature:
-40℃ ~ 75℃
6kV surge immunity, 8kV ESD
immunity
pic

Items

UTP7201GR-BTPOE(60)

UTP7202GR-BTPOE(60)

UTP7202GR-BTPOE(90)

Ethernet Ports

PoE Input Port

10/100/1000Base-T RJ-45

10/100/1000Base-T RJ-45

10/100/1000Base-T RJ-45

PoE Output Port

1*10/100/1000Base-T RJ-45

2*10/100/1000Base-T RJ-45

2*10/100/1000Base-T RJ-45

PoE

PoE Standard

IEEE 802.3af Power over Ethernet
lEEE 802.3at Power over Ethernet Plus
IEEE 802.3bt Power over Ethernet Plus Plus

PoE Power Supply Type

End-span

PoE Pin Assignment

1/2(-), 3/6(+), 4/5 (+), 7/8 (-)

Input Voltage

50~57V DC

Input Power

60W max

60W max

90W max

Output power

Max 57.4W@101m (Cat6 cable)

Max 57.4W@101m (Cat6 cable)

Max 68.3W@101m (Cat6 cable)

Switch Property

Standards

IEEE 802.3 Ethernet
IEEE 802.3u Fast Ethernet
IEEE 802.3ab Gigabit Ethernet
IEEE802.3x Flow Control

Forwarding Modes

Store and forward

Transmission Distance

Extend 100m by 1pcs
Max. 300m when 3pcs in cascade

MAC Table

 8k

Switching Capacity

4Gbps

6Gbps

6Gbps

Packet Forwarding Rate

2.98Mpps

4.46Mpps

4.46Mpps

Flow Control

IEEE 802.3x pause frame for full duplex, back pressure for half duplex

Jumbo Frame

10kB

Environment

Surge Immunity

6kV. Standard: IEC6000-4-5

ESD Protection

6kV 1a Contact Discharge Level 3,8kV 1b Air Discharge Level 3. Standard: IEC61000-4-2

Protection Level

IP67

Operating Temperature

-40℃~75℃

Storage Temperature

-40℃~85℃

Operating Humidity

0~95% (No condensation)

Physical Parameter

Dimensions (W*D*H)

193mm*75mm*38mm

Net Weight

430g±10g

474g±10g

474g±10g

Material

Metal shell

Certifications

Certifications

CE, FCC

poe repeater


Item

Quantity

Repeater

1 pc

Mounting Accessories

1 set

User Manual

1 pc
